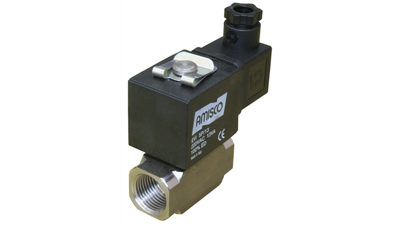

Solenoid valve, General Operated, -0.1-16 bar
Gevax
Solenoid valve, General Operated, -0.1-16 bar
Solenoid valve, General Operated, -0.1-16 bar
| SKU | Description |
|---|---|
18ABND16 | Brass Solenoid Valve 1/2", 0.1-16 bar, 220 V, NO |
18ABNE16 | Brass Solenoid Valve 3/4", 0.1-16 bar, 220 V, NO |
18ABNF16 | Brass Solenoid Valve 1", 0.1-16 bar, 220 V, NO |
Share
|
1811-ABND016-120-220VAC |
1811-ABNE016-190-220VAC |
1811-ABNF016-120-220VAC |
Preference |
|
General Purpose - Low Differential Pressure |
Main Series |
||
|
2/2 Ways |
Function |
||
|
Normally Open |
Position |
||
|
Pilot Operating |
Operation Type |
||
|
NBR Diaphragm / NBR Seal |
Seat Seal Material |
||
|
½” |
¾” |
1” |
Port Size |
|
12mm |
19 mm |
25 mm |
Orifice |
|
50.00 l/min |
100.00 l/min |
150.00 l/min |
Kv |
|
0,1-16 bar |
(Pmin-Pmax (bar | ||
|
-10 °C / 80 °C |
(Tmin / Tmax (°C | ||
|
0.580 Kg |
0.820 Kg |
1.060 Kg |
Weight |
|
12,24,220,230V AC/DC |
Coil Voltage - Tolerance | ||
