0.5mm-50cm/sec |
|
Operating frequency |
Mechanical: 120 operations/minute, Electrical: 30 operations/minute |
|
Contact resistance |
25mΩ max. (initial value) |
|
Insulation resistance |
100mΩ min. (at 500VDC) |
|
Dielectric strength |
1000VAC, 50/60HZ for 1 minute between terminals of the same polarity |
|
1500VAC, 50/60 HZ for 1 minute between currentcarrying |
|
|
1500VAC, 50/60 HZ for 1 minute between each terminal and ground |
|
|
Vibration |
10-55HZ,1.5mm double amplitude |
|
Shock |
Mechanical durable: 1, 000m/Sec2 (about 100G'S) |
|
Ambient temperature |
-5ºC to +65ºC |
|
Humidity |
<95% RH |
|
Life |
Mechanical: 10,000,000 operations above |
|
Weight |
About 130 to 190g |
|
Degree of protection |
IP65 |
|
|
TZ-8104 |

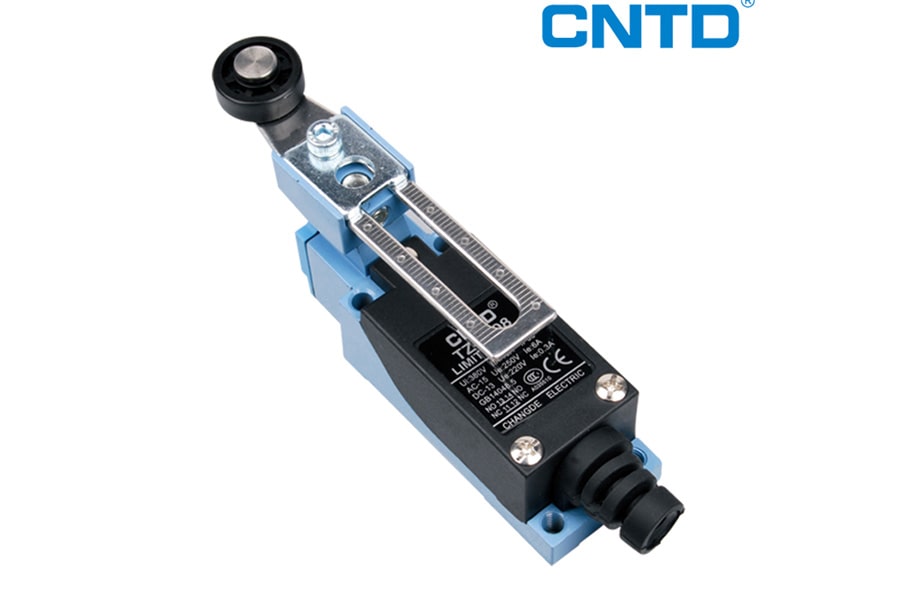

TZ-8108 |
TZ-8107 |
TZ-8111 |
TZ-8112/8122 |
TZ-8166/8167/8168/8169 |
|
OF Max. |
750g |
750g |
750g |
900g |
900g |
150g |
|
RF Min. |
100g |
100g |
100g |
150g |
150g |
- |
|
PT Max. |
20º |
20 º |
20 º |
1.5mm |
1.5mm |
30mm |
|
OT Min. |
50 º |
50 º |
50 º |
4mm |
4mm |
- |
|
MD Max. |
12 º |
12 º |
12 º |
1mm |
1mm |
- |
|
OP |
- |
- |
- |
26 ± 0.8mm |
37 ± 0. |
